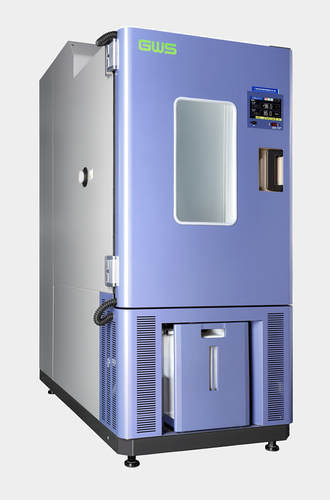

EK Series

The EK series is designed for user that required a standard humidity soaking range.   With electrical and water circuit compartment built on the right side of the chamber, the depth of the footprint has been reduced.   Similar to the Silver series, it comes with a powerful and intelligent 7 inches colour TFT touch screen controller too.   A standard viewing window with heaters to prevent condensation is provided as well as the multi-level of independent overheat protection and safety features.

Model	Temp. range	Humidity range	Inside dimensions (mm)
ER-02K(A/W)	-20 to +150°C	25 to 98%RH 20 to +85°C	W500×H750×D600
ER-04K(A/W)			W600×H850×D800
ER-10K(A/W)			W1000×H1000×D1000
EM-02K(A/W)		-	W500×H750×D600
EM-04K(A/W)			W600×H850×D800
EM-10K(A/W)			W1000×H1000×D1000
EL-02K(A/W)	-40 to +150°C	25 to 98%RH 20 to +85°C	W500×H750×D600
EL-04K(A/W)			W600×H850×D800
EL-10K(A/W)			W1000×H1000×D1000
EU-02K(A/W)		-	W500×H750×D600
EU-04K(A/W)			W600×H850×D800
EU-10K(A/W)			W1000×H1000×D1000
ESL-01K(A/W)	-70 to +150°C	25 to 98%RH 20 to +85°C	W400×H500×D500
ESL-02K(A/W)			W500×H750×D600
ESL-04K(A/W)			W600×H850×D800
ESL-10K(A/W)			W1000×H1000×D1000
EG-01K(A/W)		-	W400×H500×D500
EG-02K(A/W)			W500×H750×D600
EG-04K(A/W)			W600×H850×D800
EG-10K(A/W)			W1000×H1000×D1000



(A – Air Cooled Condenser / W – Water Cooler Condenser)

EW Series

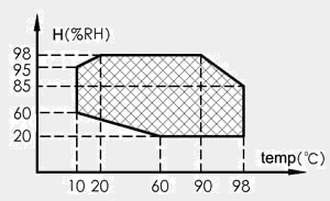

The EW series come in various size and temperature range for selection.   It comes with a powerful 7 inches colour TFT touch screen controller where you can store up to 20 RAM program patterns with up to 1,000 steps/pattern and 20 cycles each (max 99 times/cycle).   With the intelligent Dynamic Cooling Control (DCC) of cooling capacity, energy consumption has been dramatically improved.   It features lower noise level, wider humidity range, and increased live heat load capacity.   Besides a standard viewing window with high intensity and long life LED light, the interior can be access from standard cable ports at both left and right side of the chamber.   For your peace of mind, these chambers come with multi-level of independent overheat protection as well as other safety features.

Model	Temp. range	Humidity range	Inside dimensions (mm)
EW 0220	-20°C to +150°C	20 to 98%RH 10 to 98°C	W500×H735×D600
EW 0420			W600×H835×D800
EW 1020			W1000×H980×D1000
EW 0140	-40°C to +150°C	20 to 98%RH 10 to 98°C	W500×H500×D500
EW 0240			W500×H735×D600
EW 0440			W600×H835×D800
EW 1040			W1000×H980×D1000
ET 0140		-	W500×H500×D500
ET 0240			W500×H735×D600
ET 0440			W600×H835×D800
ET 1040			W1000×H980×D1000
EW 0470	-80°C to +150°C	20 to 98%RH 10 to 98°C	W600×H835×D800
EW 1070			W1000×H980×D1000
ET 0470		-	W600×H835×D800
ET 1070			W1000×H980×D1000
EW 2470	-70°C to +150°C	20 to 98%RH 20 to 85°C	W1300×H1300×D1400
ET 2470W		-	W1300×H1300×D1400

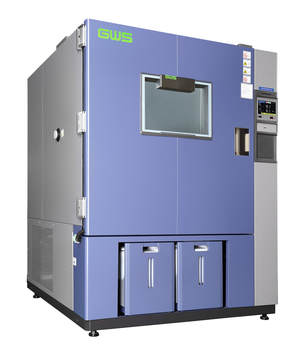

H Series

The H series is an extension of EK series with slightly faster temperature change rate.   It can pull down at the rate of 3°C/min over the range of -55 to +70°C or from +120 to -40°C.   The humidity range has been widen too compared to EK series.



Model	Temp. range	Humidity range	Inside dimensions (mm)
HSL-04KA	-70 to +150°C	10 to 98%RH 10 to +95°C	W600×H850×D800
HSL-10KA			W1000×H1000×D1000
HG-04KA		-	W600×H850×D800
HG-10KA			W1000×H1000×D1000



MINI Series

A small yet powerful bench top chamber which can fit on your personal desk.   This small package comes with a big 7” touch screen controller.   With the intelligent controller, it has a low power consumption and noise level.   Suitable for R&D purpose as specimen can be access via cable port from both left and right side and connect to specimen power control terminal.   It is equipped with multi-level of independent overheat protection as well as other safety features for your peace of mind.



Model	Temp. range	Humidity range	Inside dimensions (mm)
MW 3030	-30°C to +150°C	25 to 98%RH 25 to 85°C	W300×H400×D250
MT 3065	-65°C to +150°C	-	W300×H400×D250





MC Series

A compact chamber which is stable and reliable to cover a wide temperature range from +150°C to the ultra-low -80°C.   It comes with a standard large viewing window with LED light for superior visibility.   This chamber can be connected via our optional networking system RAS-2003 for easier monitoring too.



Model	Temp. range	Voltage	Inside dimensions (mm)
MC-411	-40 to +150°C	AC415V/3Ph/50Hz	W400×H375×D400
MC-811-3	-80 to +150°C
MC-811-2		AC240V/1Ph/50Hz



ARYORD Series

The ARYORD series of walk-in chambers are highly customizable in term of temperature range, change rate, humidity test points and sizes for specific customer requirement. Cooling capacity is controlled by electronic expansion valve to provide higher efficiency and energy saving.

Vol. No.	Min. Temp.	Max. Temp.	Humidity range	Inside dimensions (mm)
				W	H	D
40	-15°C or -20°C or -25°C or -40°C or -65°C	+85°C	25 to 98%RH 20 to 70°C	1800	Type A: 2100 or Type B: 2400	900
60						1450
80						1800
120				2700		?
160						?
180						2700
230						3600
290				3600		?
310						3600
390						4500
470						5400
